Home Equipment Power Generation Tower Lighting
Solar Towerlight Diesel Towerlight
Solar Towerlight Diesel Towerlight

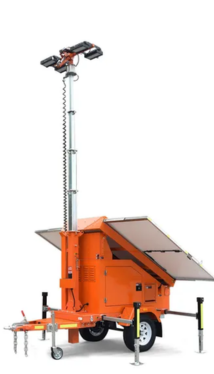

Solar Towerlight

  • Kanoo Machinery is the sole and legal distributor for Lux Solar tower light in Kingdom of Saudi Arabia.
  • Self-sufficient machine with zero maintenance cost.
  • Great machine with larger illuminating area.
  • 5 Years or 50,000Hrs warranty on LED floodlights.
  • Easy to carry in remote areas due to its robust engineered trailer type wheels.

LED FLOODLIGHTS
4 X 60 W (IP65K)
ILLUMINATED AREA - 2400 m²

VERTICAL TELESCOPIC MAST
MAX HEIGHT - 8.5 m
LIFETIME WARRANTY

BATTERY PACK - N.2 UNITS
AGM 24V DC - 260 Ah
EXPECTED OPERATION HRS - 9

DEDICATED FRONTAL PANEL
BATTERY CHARGER
MANUAL | AUTO MODE
LIGHT SENSOR

N.2 SOLAR PANEL
WATTAGE - 340 W EACH

GALVANIZED METAL BODY
80 µm POWDER COATING

Loading Plan

Tower Lighting LOADING PLAN

Illuminated Area

Tower Lighting ILLUMINATED AREA
Tower Lighting Structure
  • 20 HRS RUNNING TIME
  • MANUAL/AUTO MODE
  • LIGHT SENSOR
  • CONTROL PANEL
    - Battery Status
    - External power source spy
    - Lamps hour meter
    - Light sensor relay
    - Lamp switches

OUR FEATURES

Super Silent
No Maintenance
No Fuel Costs
No Emissions

TECHNICAL DATA

Dimensions & Weight

Dimensions min. mm 3215 X 2040 X 2750
Dimensions max. mm 3640 X 2600 X 8500
Total weight without fuel Kg 785

Features

Floodlight W 4 X 60 W
Lamps type W Led
Floodlight IP level 65K
Mast Rotation 340°
Lifting method Manual
Wind stability Km/h 80

Solar Panel

Model Victron Monocrystal Silicon
Quantity n 2
Wattage W 340
Solar charger control MPPT 100-30
Solar panels deployment Manual - Fix Inclination 26°

Batteries

Type AGM
Quantity n 2
Battery Pack Power 24VDC – 260Ah
Expected battery cycles n 500
Running Time h 20
Charging time (Led Off) h 9

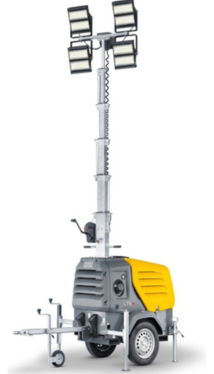

Diesel Towerlight

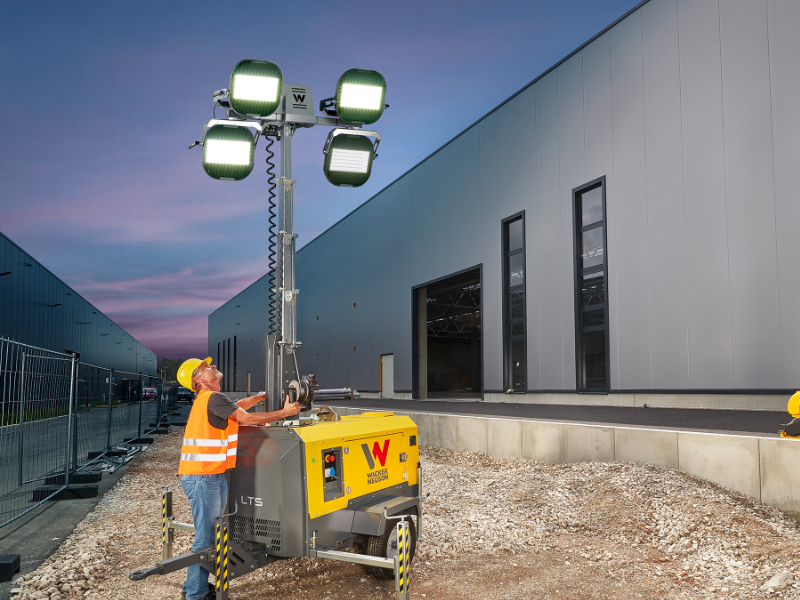

Don't let darkness halt your progress. Wacker Neuson light towers keep your workday going strong. Our towers boast long-lasting LED lights that illuminate the entire area , extending your working hours and enhancing safety. Large fuel tanks ensure continuous operation, eliminating the need for frequent refueling. The adjustable vertical masts rotate a full 360 degrees, letting you direct powerful light exactly where it's needed. Wacker Neuson light towers: Keep your projects shining, day or night.
